Service

Sheriff Department

Seminole County Sheriff
Airbus AS350B3

Project Overview

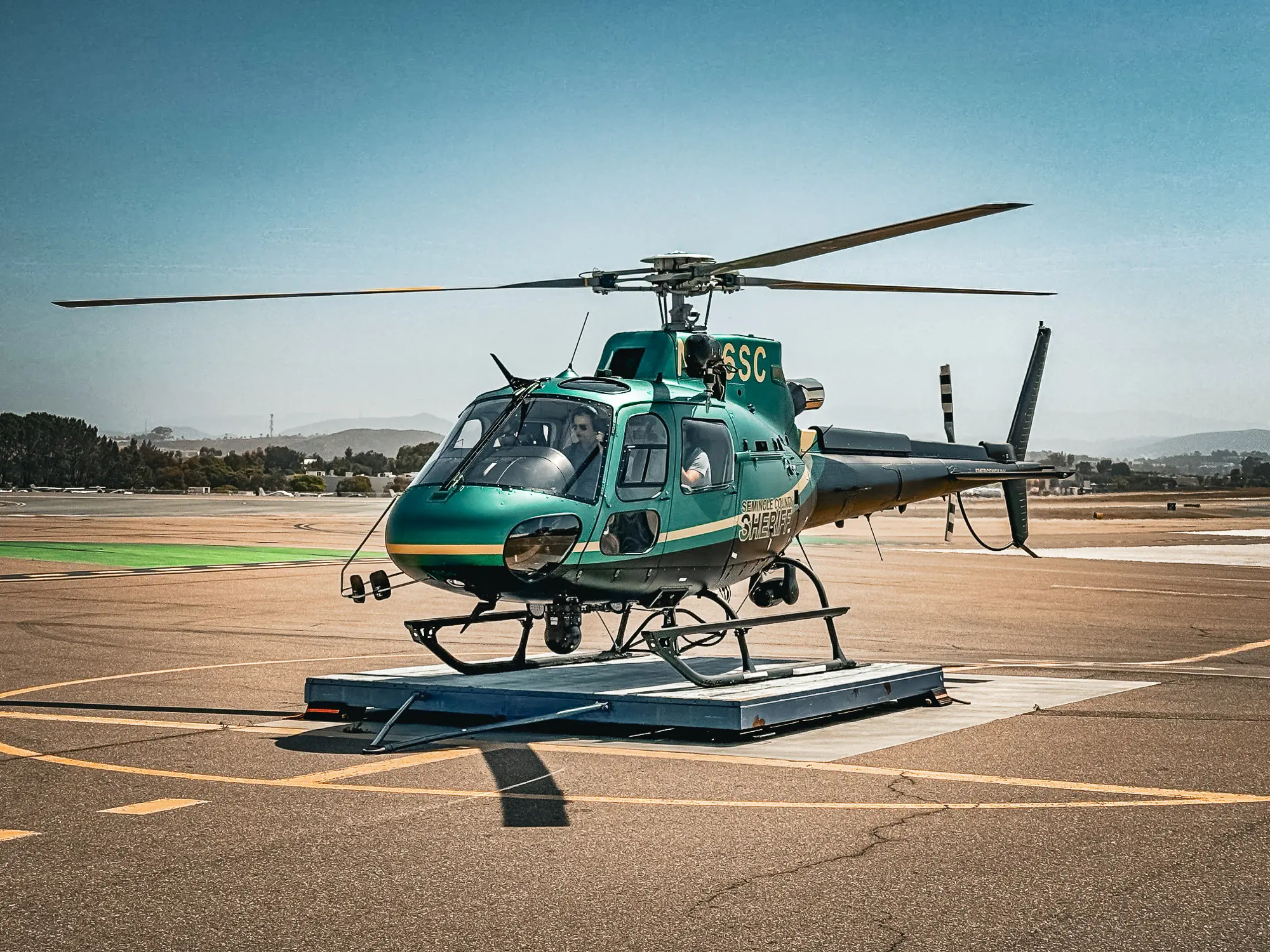

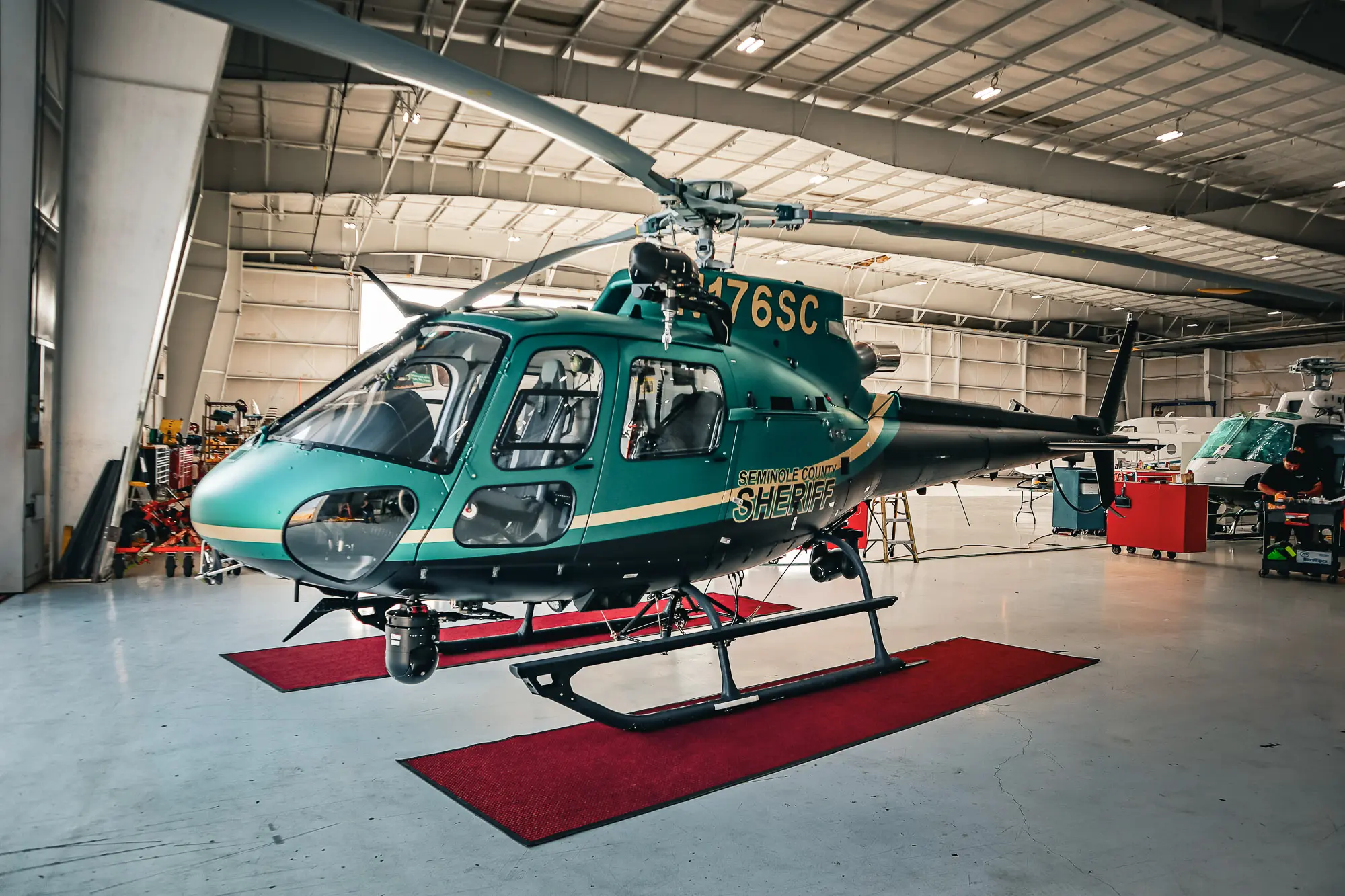

Hangar One Avionics, Inc. completed a fully mission-configured Airbus AS350B3 helicopter for the Seminole County Sheriff’s Office. Designed to support a wide range of operations including observation, search and rescue, firefighting, and special missions, this multi-role platform was outfitted with a robust suite of enhanced avionics, video surveillance, communications, and tactical equipment to strengthen the agency’s aerial capabilities across Seminole County, FL.

The build integrates a Garmin G500H TXi flight display system, dual GTN650Hxi/750Hxi GPS/NAV/COM units, advanced autopilot and radar systems, and a full-width custom instrument panel by Hangar One. Mission equipment includes a L3 Harris MX-10 camera, Shotover ARS750C mapping system, cellular downlink, multiple video displays, and forward/aft mini cams. Additional capabilities feature a Breeze Eastern hoist with integrated ops console, fast rope system, modular seating, cargo hook suspension, Trakkabeam searchlight, NVIS cockpit lighting, and airframe enhancements including AC, inlet barrier filter, and aft cabin window modifications. Engineered for rapid response and life-saving missions, this aircraft reinforces Seminole County’s fleet with advanced technology and proven performance.

Client
Seminole County Sheriff
Aircraft
Airbus AS350B3
Market
Sheriff Department
Location
Seminole County, FL

Specs

Specifications
& Services

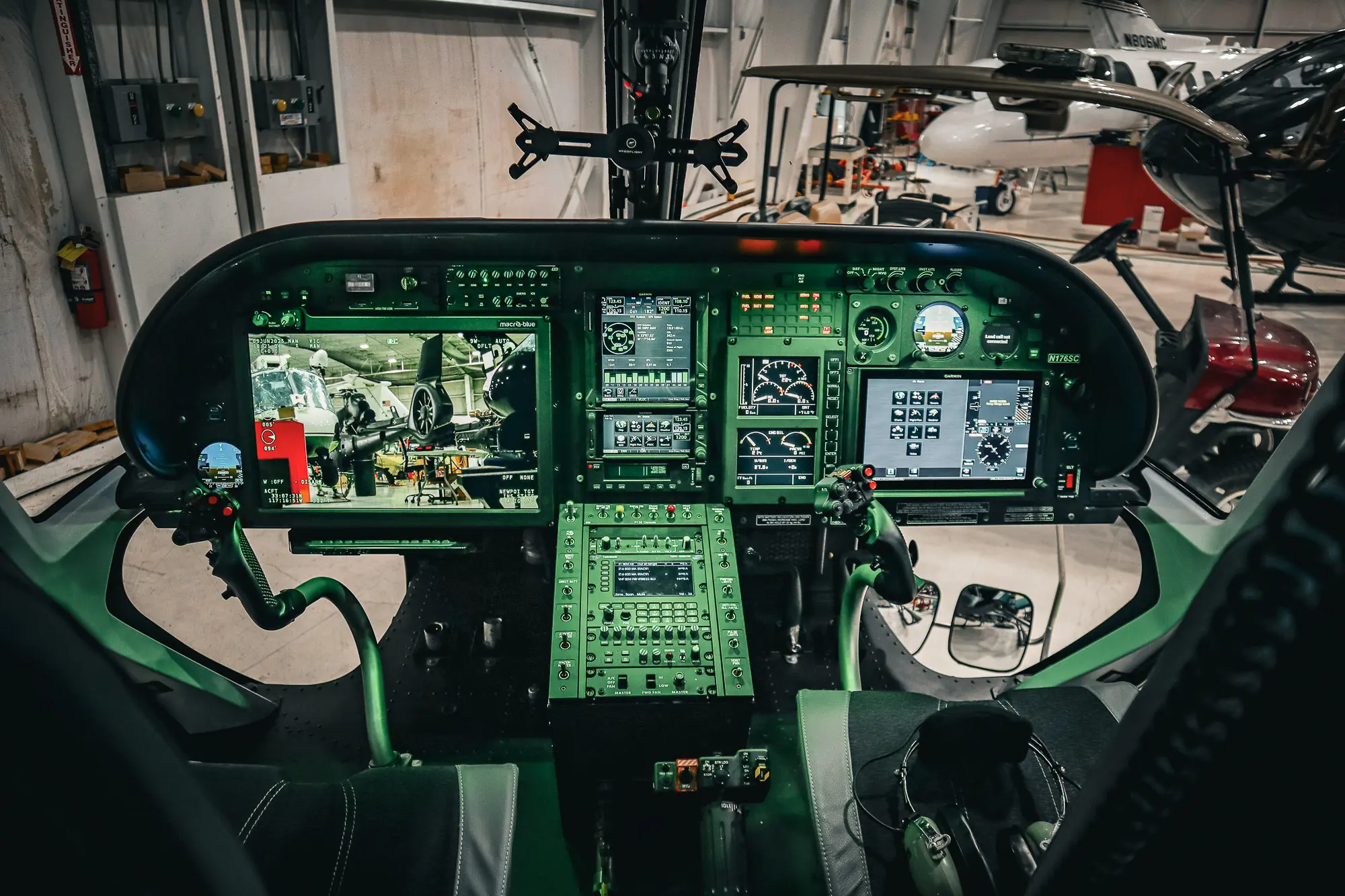

Instrument Panel and Consoles

  • Hangar One Avionics, Inc Full Width Instrument Panel
  • AEM USA, Inc. P132 Console

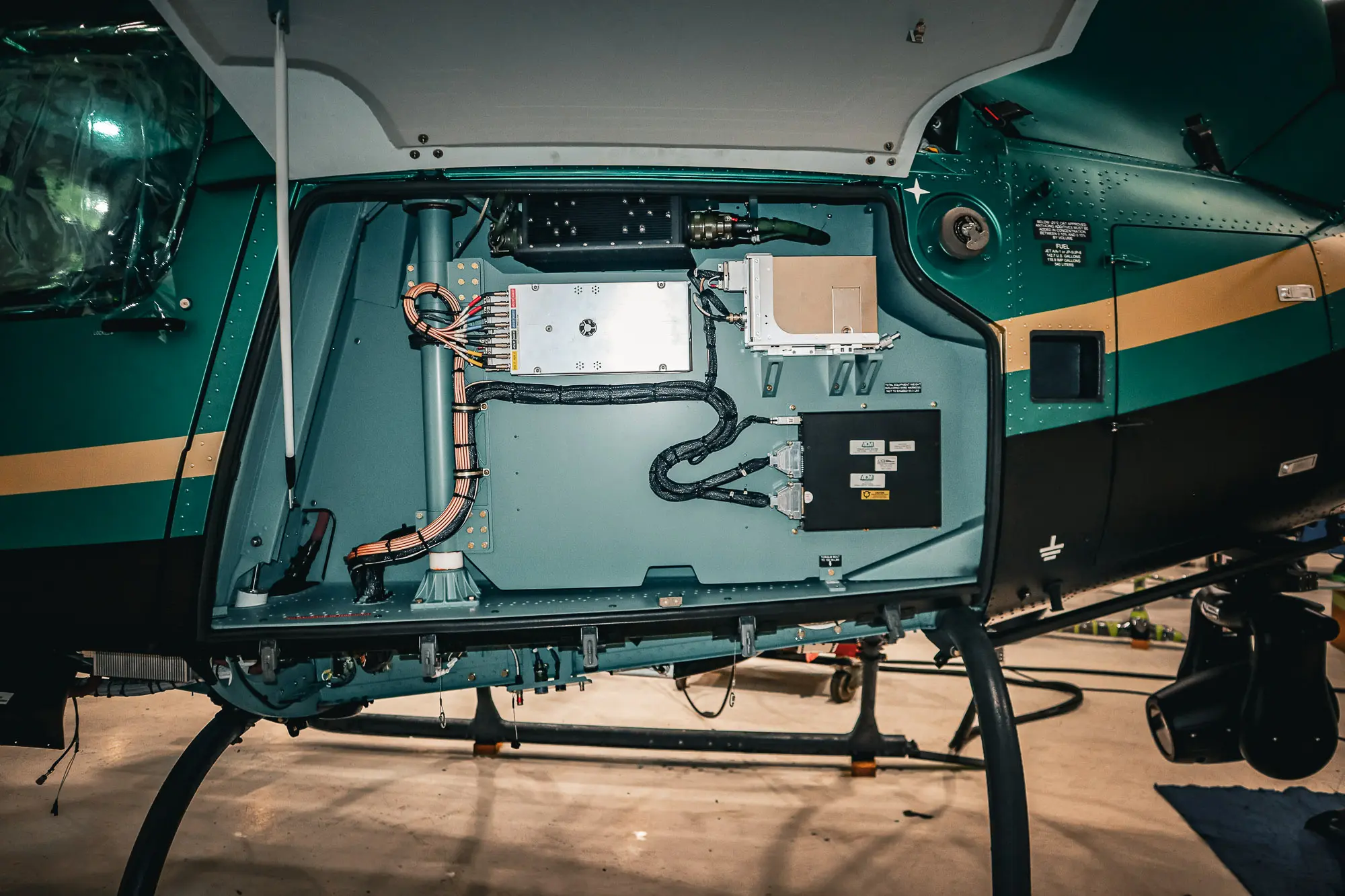

  • Hangar One Avionics, Inc. LH Baggage Swing Out Avionics Mounting Rack Assembly
  • Hangar One Avionics, Inc. – 7 Degree Wall Hoist Operator Console Assembly

Avionics

  • Garmin G500H TXi Flight Display System
  • 2ea Garmin GI-275 ADI with Class III ADAHRS Units, each with a with Back-up Battery
  • Garmin GFC600H Flight Control System
  • Garmin GTX345R ADS-B in/out Mode S Transponder
  • Garmin GTS800 Traffic Advisory System
  • Garmin GRA55 Radar Altimeter System (5G Tolerant)
  • Garmin GDL68AH SXM Weather System

Communications

  • AEM P139HD Digital Audio System
  • Dual Garmin GTN650Hxi/750Hxi (NVG) GPS/SBAS/NAV/COMs with the GTN750Hxi HTAWS Option
  • Technisonic TDFM 9000/NV Multi-Band Transceiver System
  • Garmin GSR56H Remote Satellite Radio
  • Public Address System
  • Handheld Radio Quick Disconnect Provisions

Video, Observation and Tracking

  • L3 Harris MX-10 Camera System
  • Shotover ARS750C Mapping System
  • Cellular Downlink System
  • Pepwave Wi-Fi Unit
  • MacroBlue 17” Video Display System
  • Hangar One Avionics, Inc. Forward and Aft Looking Mini Cams
  • Hangar One Avionics, Inc. Hoist Mini Cam
  • Appareo AIRS-400 Cockpit Camera

Lighting

  • AeroDynamix NVIS Cockpit Lighting Modification
  • Trakkabeam Searchlight System
  • Airbus Helicopters, Inc. Nose Mounted Steerable Landing Light
  • Hoffman LED Hoist Light

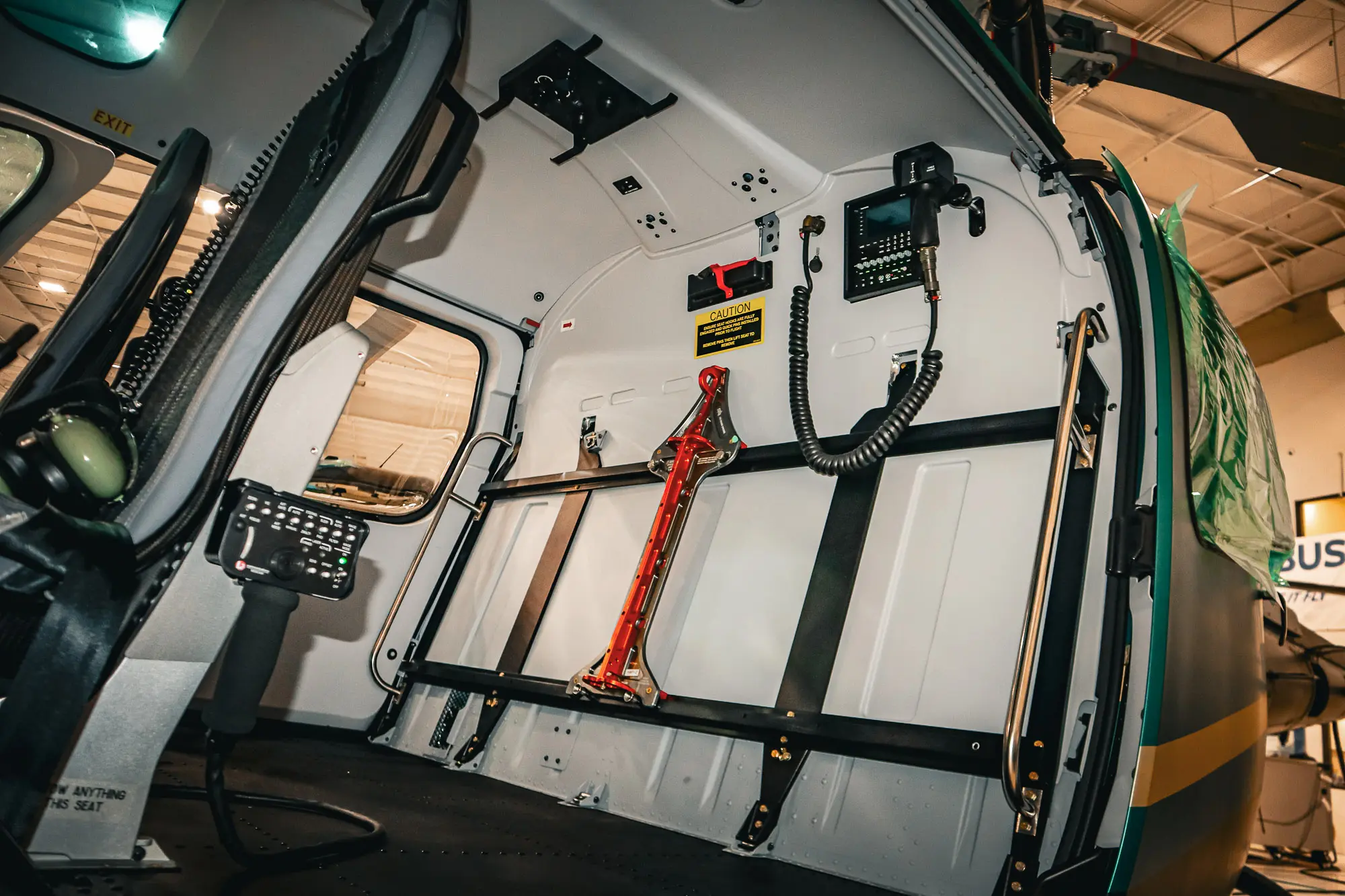

Rescue, Special Mission and Cabin Equipment

  • Breeze Eastern Hoist – Fixed and Removable Provisions
  • Tyler Fast Rope System

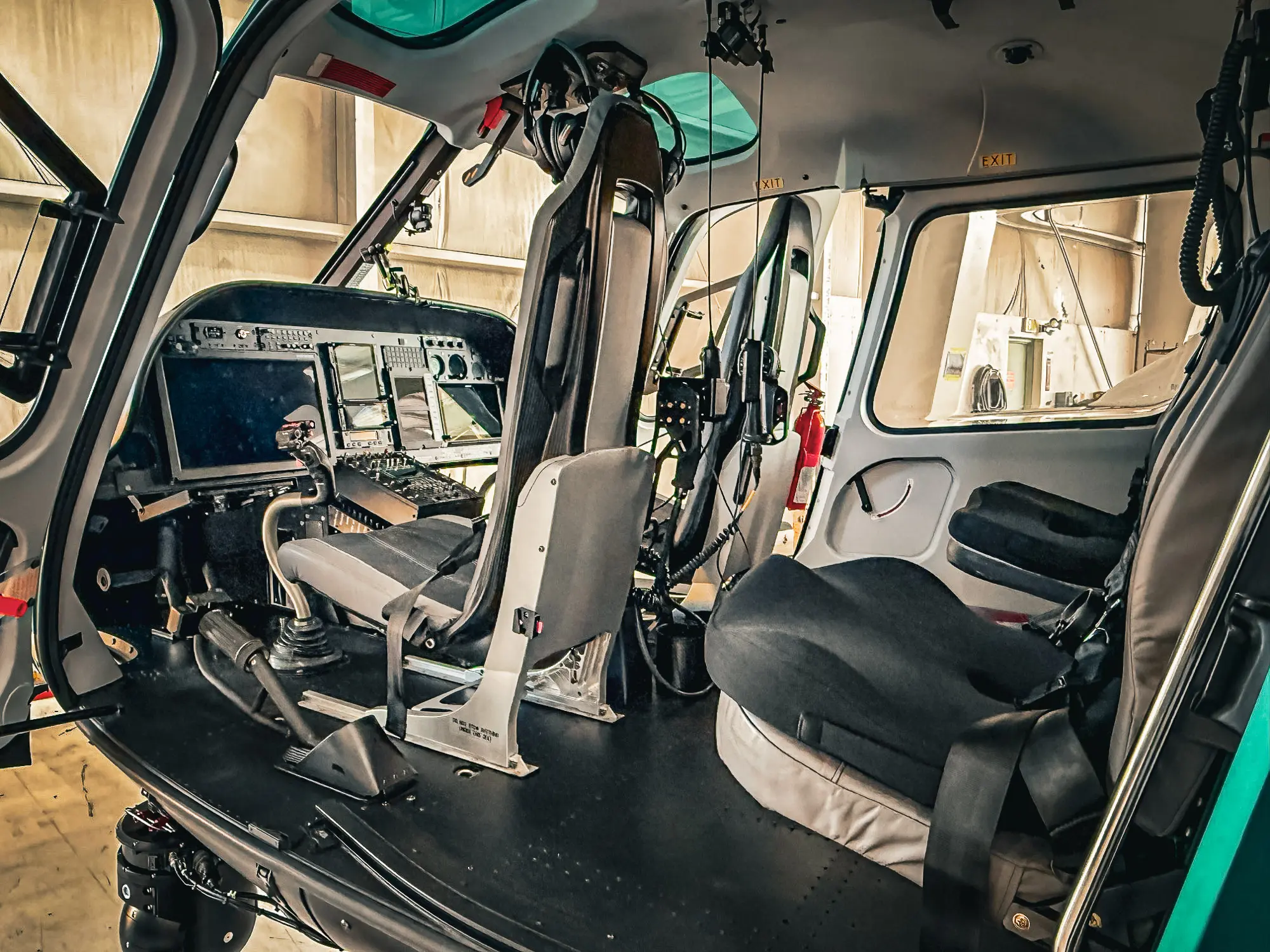

  • LifePort, Inc. Modular Seat System
  • Hangar One Avionics, Inc. Cabin Hand Hold for Hoist Ops
  • Onboard Systems Cargo Hook Swing Suspension System
  • Airbus Helicopters Canada Limited (AHCA) Cargo Mirror

Airframe Equipment

  • Tech-Tool Plastics, Inc. Aft Cabin Windows
  • Dart Aerospace, Ltd. Cable Cutter
  • RSG Products, Inc. Single Condenser Blower Air-Conditioning System
  • Aerometals, Inc. Engine Inlet Barrier Filter System
  • Purolator Facet, Inc. Oil Scavenge Filter
  • Airbus Helicopters Canada Limited (AHCA) Main Rotor Tie Down Provisions

Photos

Mission
Gallery
